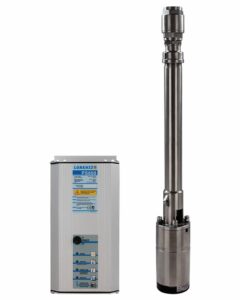

PS600 HR-03 Submersible Centrifugal Solar Pump System

The LORENTZ PS600 series controller operates the ECDRIVE-600 motor for up to 700W of pumping power. Having seven models of HR-series and two models of C-series submersible pump ends to choose from, for performance up to 600ft TDH or up to 51 GPM, this series fits a wide range of applications.

The HR series pump end is a progressive-cavity type pump. It uses a helical rotor to push small pockets of water through the pump end at high speed. Various models to choose from allow optimization for the head pressure or flow rate required.

Features

  • Engineered in Germany
  • Water temperature specific variants to provide the most efficient outputs
  • High quality non corrodible materials used throughout
  • Cast stainless steel components
  • Solar direct optimized controller at surface
  • MPPT technology to optimize performance in changing solar conditions
  • ECDRIVE DC brushless motors with over 90% efficiency
  • Incorporated data logging technology
  • Optional AC power supply converter

Specifications

  • System Type: Submersible
  • Application Type: Water
  • Head Pressure: 200 – 400 Ft. (87 – 173 PSI)
  • Flow Rate: (GPM peak)
  • Minimum Well Casing Diameter: 4″
  • Pump Type: Progressive Cavity



Features

  • Engineered in Germany
  • Water temperature specific variants to provide the most efficient outputs
  • High quality non corrodible materials used throughout
  • Cast stainless steel components
  • Solar direct optimized controller at surface
  • MPPT technology to optimize performance in changing solar conditions
  • ECDRIVE DC brushless motors with over 90% efficiency
  • Incorporated data logging technology
  • Optional AC power supply converter

Specifications

  • System Type: Submersible
  • Application Type: Water
  • Head Pressure: 200 – 400 Ft. (87 – 173 PSI)
  • Flow Rate: (GPM peak)
  • Minimum Well Casing Diameter: 4″
  • Pump Type: Progressive Cavity
