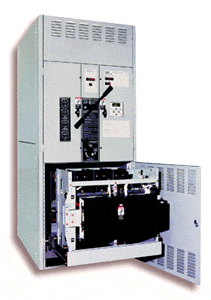

ASCO 7000 Series Bypass Isolation Transition Automatic Transfer Switch

ASCO 7000 Series Bypass Isolation Transition Automatic Transfer Switch

ASCO 7000 Series Automatic Transfer & Bypass-Isolation Switches are available in open transition, closed transition, and delayed transition designs. The Asco bypass and isolation features allow power transfer switches to be inspected, tested, and maintained without any interruption of power to the load. The ASCO 7000 Series ATS common applications include:  Healthcare Facilities, Commercial Buildings, Industrial Buildings, Web Hosting, Internet Data Centers, Telecom Central Offices, Process Manufacturing, Fabrication Plants, and Distributors/Power Load Management. In addition to providing quality-driven product innovation for over 70 years, ASCO provides 24-hour nationwide service for the 7000 series automatic transfer switch products.

  • Asco 7000 series available 140-4000 ampheres
  • The 7000 series transfer switch allows bypass-isolation without load interruption
  • Bypass switch and transfer switch have identical electrical ratings
  • Heavy duty mechanical interlocks prevent undesirable operation
  • Bypass contacts carry current only during bypass mode
  • Asco 7000 series automatic transfer switch is drawout design for ease of maintenance
  • Bypass and isolation handles are permanently mounted
  • Bypass switch has dead front quick-make, quick-break operation for transferring loads between live sources
  • Bypass switch is fully rated for use as a manual 3-position transfer switch
  • Bypass and isolation functions are simple, requiring a total of two operating handles
  • The 7000 series automatic transfer switch has no toggle switches, push buttons, selector switches or levers are required for bypass-isolation operation
  • Mechanical indicators show bypass and transfer switch positions

Product Specifications:  ASCO 7000 Series Brochure (pdf)
