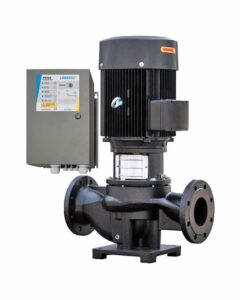

PS7k2 CS-G100-17/2 Surface Centrifugal Solar Pump System
LORENTZ PSk-CS surface pumps are vertical multi-stage and single-stage pumps designed to efficiently deliver the highest volumes of water from a solar power source. PSk-CS surface pumps are typically used in irrigation projects and for wide area drinking water applications where they reliably meet the most demanding requirements, economically, without pollution and without a grid connection or diesel generator.
These highly efficient surface pumps can achieve flow rates of up to 2010 GPM (at low pressure) or up to a 296ft of head (at lower flow). Each system consists of a pump, motor and a controller. AC-power integration options are available. All components are carefully designed for use with direct solar connections. The modular concept allows for simple servicing and a lower cost of ownership.
Features
- Engineered in Germany
- Very strong ROI against diesel powered pumping
- Long life expectancy and proven in service record
- High quality non corrodible materials used
- Designed for use in remote and harsh conditions
- Solar direct connect with AC connection options
- MPPT technology to maximise power use from PV modules
- 3-phase air cooled high efficiency motor
- Data logger integrated into the controller with a display of key running data
Specifications
-
System Type:Â Surface
-
Application Type:Â Water
-
Head Pressure:Â 20 – 59 Ft. (9 – 26 PSI)
-
Flow Rate:Â 502Â (GPM peak)
-
Pump Type:Â Surface Centrifugal
Features
- Engineered in Germany
- Very strong ROI against diesel powered pumping
- Long life expectancy and proven in service record
- High quality non corrodible materials used
- Designed for use in remote and harsh conditions
- Solar direct connect with AC connection options
- MPPT technology to maximise power use from PV modules
- 3-phase air cooled high efficiency motor
- Data logger integrated into the controller with a display of key running data
Specifications
-
System Type:Â Surface
-
Application Type:Â Water
-
Head Pressure:Â 20 – 59 Ft. (9 – 26 PSI)
-
Flow Rate:Â 502Â (GPM peak)
-
Pump Type:Â Surface Centrifugal
