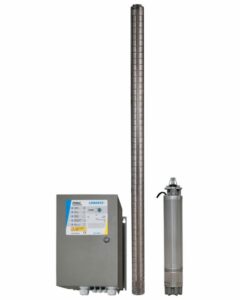

PS9k2 C-SJ8-44 Submersible Centrifugal Solar Water Pump
LORENTZ PSk pumps are high quality products designed to deliver the highest volumes of water across a wide range of lifts. PSk pumps are typically used in irrigation projects and for wide area drinking water applications where they reliably meet the most demanding requirements, economically and without the use of fossil fuels or a grid connection.
These highly efficient pumps can achieve flow rates of up to 1030 GPM (at low pressure) or pump from depths of 650ft (at lower flow rates). Each system consists of a pump, pump motor and a controller, this modular concept keeps all electronics above ground, simplifying servicing and lowering cost of ownership.
Features
- Engineered in Germany
- High quality non corrodible materials used
- Solar direct connect with AC connection options
- MPPT technology to maximise power use from PV modules
- 3-phase air cooled high efficiency motor
- Data logger integrated into the controller with a display of key running data
Specifications
-
System Type:Â Submersible
-
Application Type:Â Water
-
Head Pressure:Â 263 – 591 Ft. (114 – 256 PSI)
-
Flow Rate:Â 52Â (GPM peak)
-
Minimum Well Casing Diameter:Â 6″
-
Pump Type:Â Submersible Centrifugal
Features
- Engineered in Germany
- High quality non corrodible materials used
- Solar direct connect with AC connection options
- MPPT technology to maximise power use from PV modules
- 3-phase air cooled high efficiency motor
- Data logger integrated into the controller with a display of key running data
Specifications
-
System Type:Â Submersible
-
Application Type:Â Water
-
Head Pressure:Â 263 – 591 Ft. (114 – 256 PSI)
-
Flow Rate:Â 52Â (GPM peak)
-
Minimum Well Casing Diameter:Â 6″
-
Pump Type:Â Submersible Centrifugal
